Breaux Overland

Starlink Rental Prewired Battery Box and Lid Mount for Starlink Mini

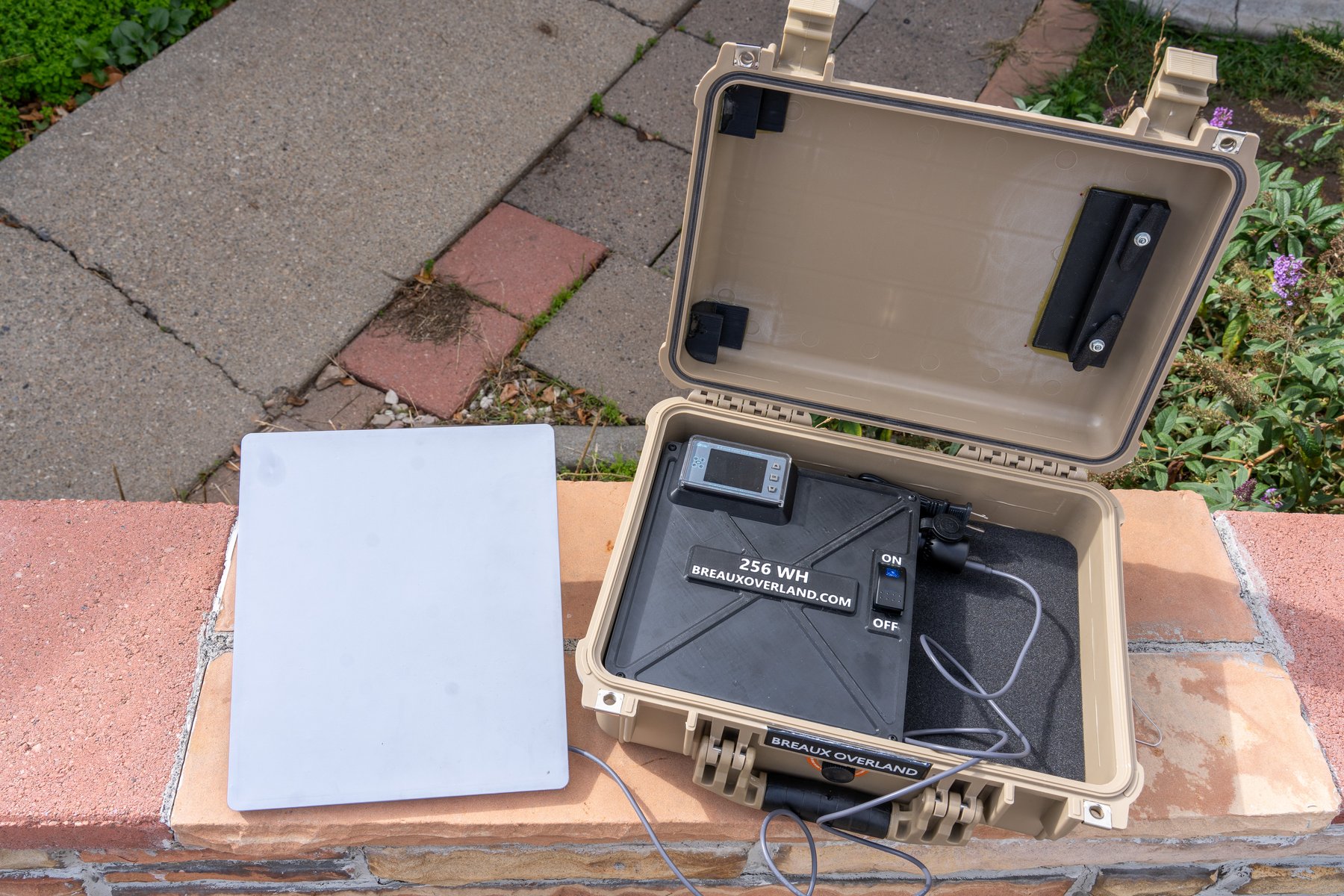

Open Starlink Mini power kit on a brick wall, battery box with meter and lit switch in the case and the dish lying beside it
The prewired box in an Apache 3800 case, with the Starlink Mini beside it.

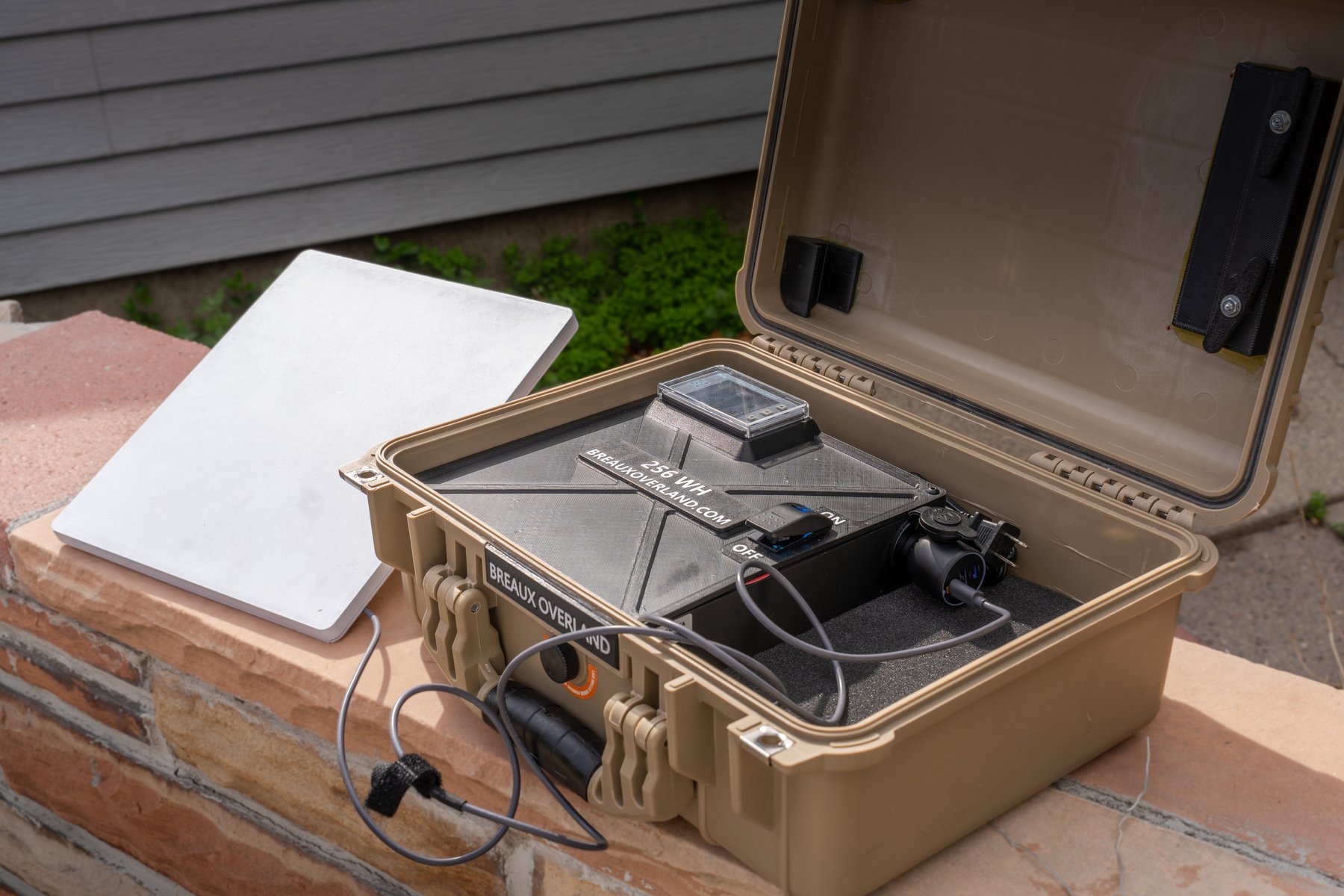

Open Starlink Mini power kit at an angle, dish leaning beside the case, battery box switched on
Switched on and ready to use.

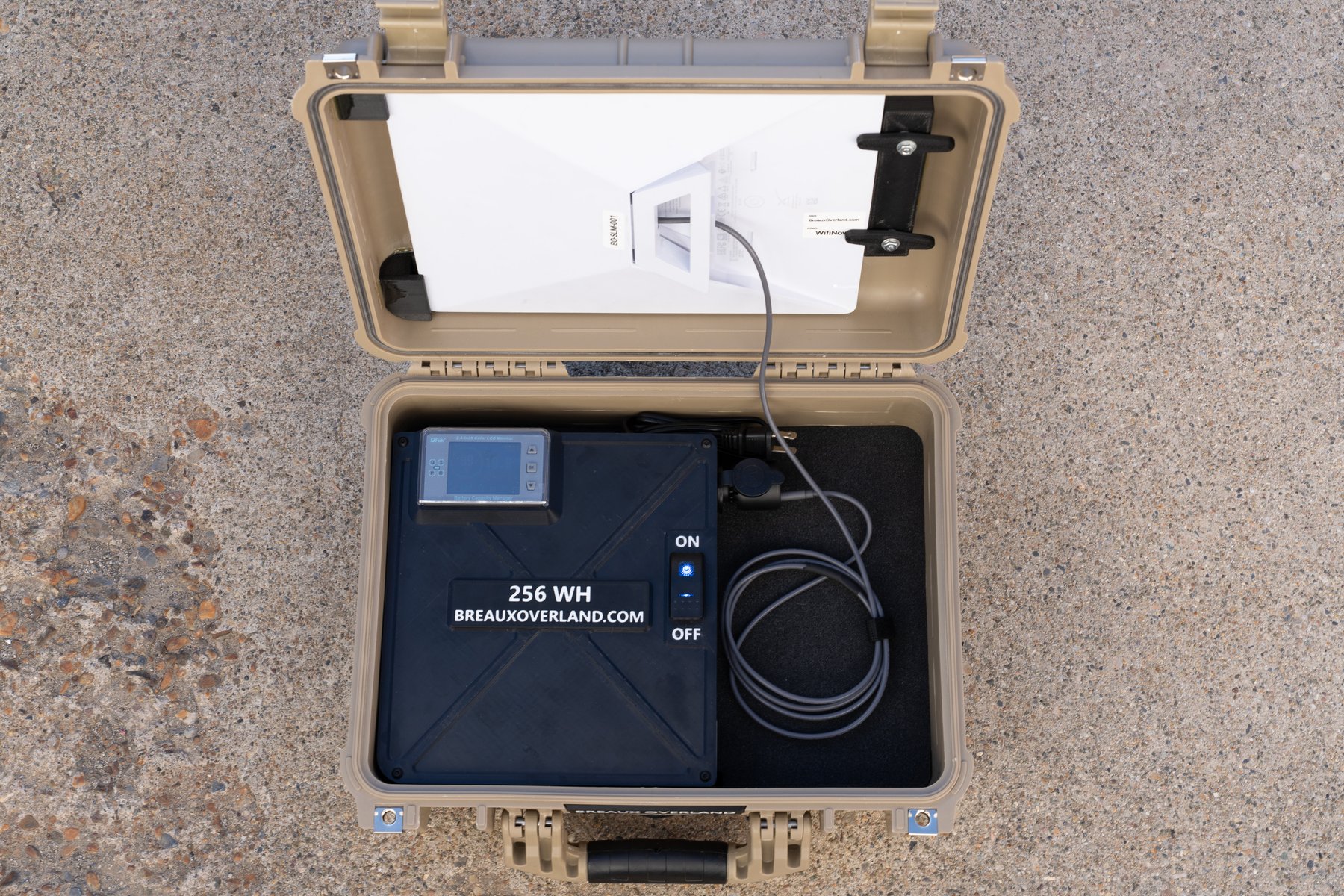

Open Starlink Mini power kit seen from above: dish in the lid and battery box in the base
Dish stored in the lid, box in the base.

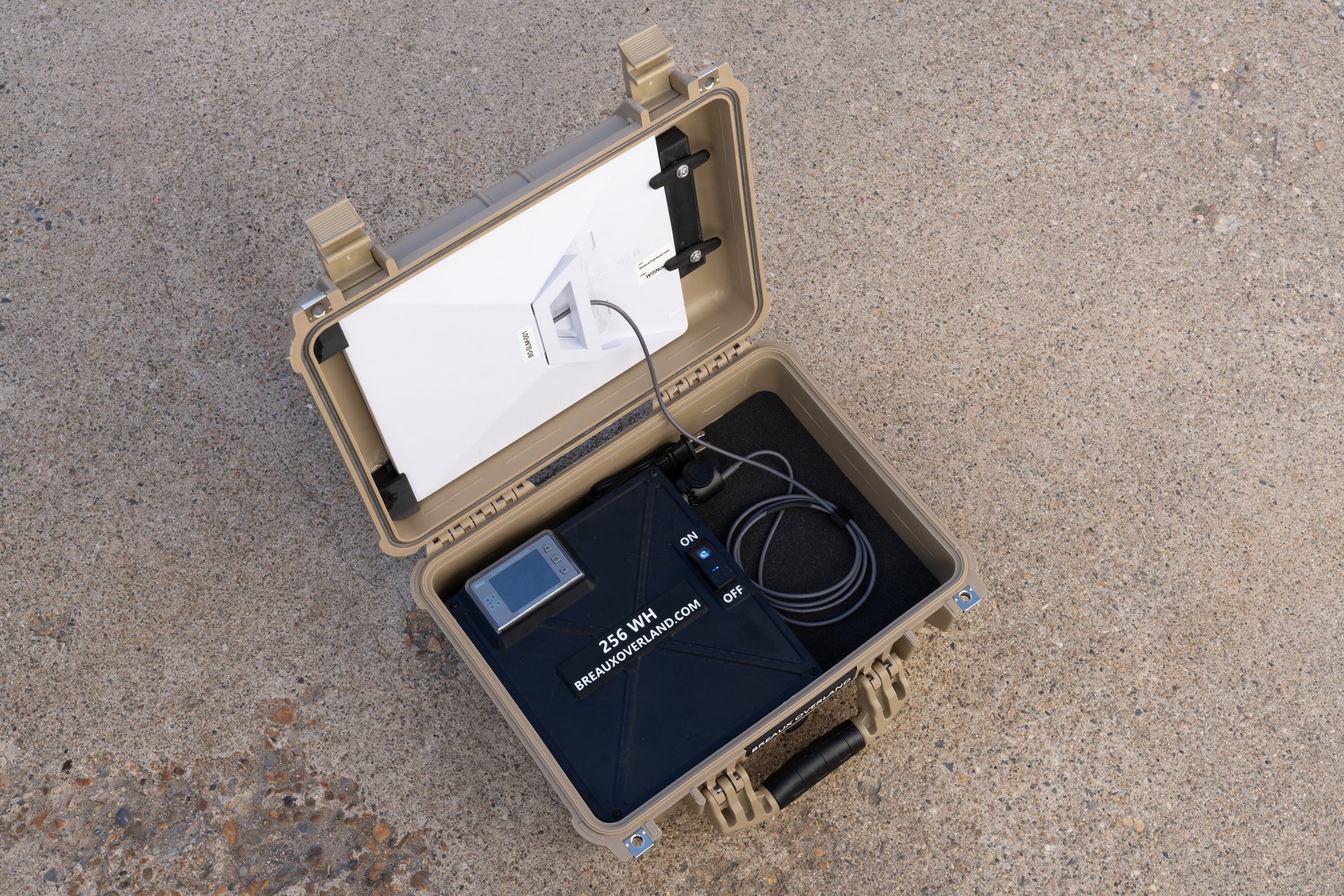

Open Starlink Mini power kit on concrete, seen from the side
Tool-free lid mount holding the dish.

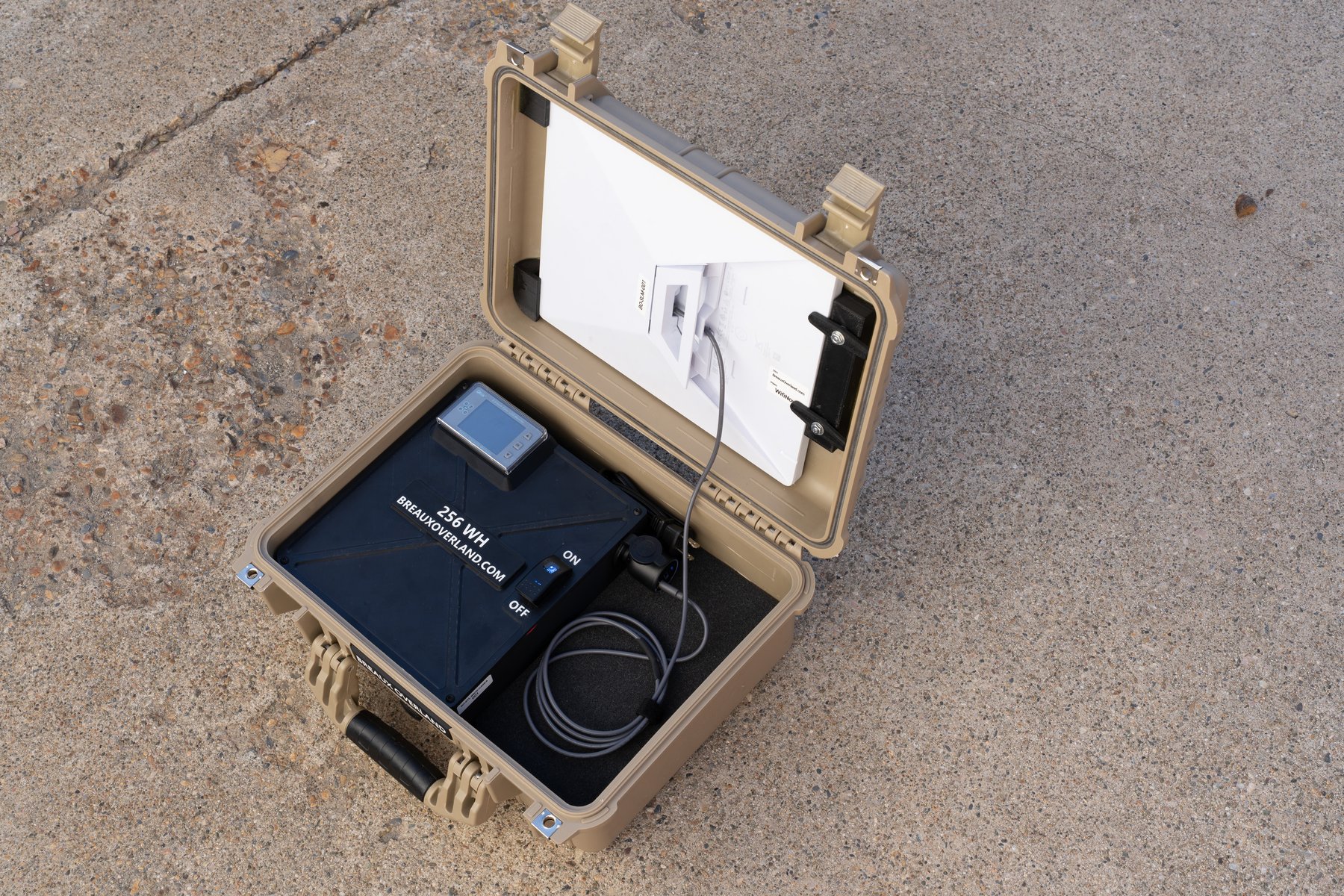

Open Starlink Mini power kit on concrete from the front right, battery box switched on
Meter, lit switch and 12 V socket.

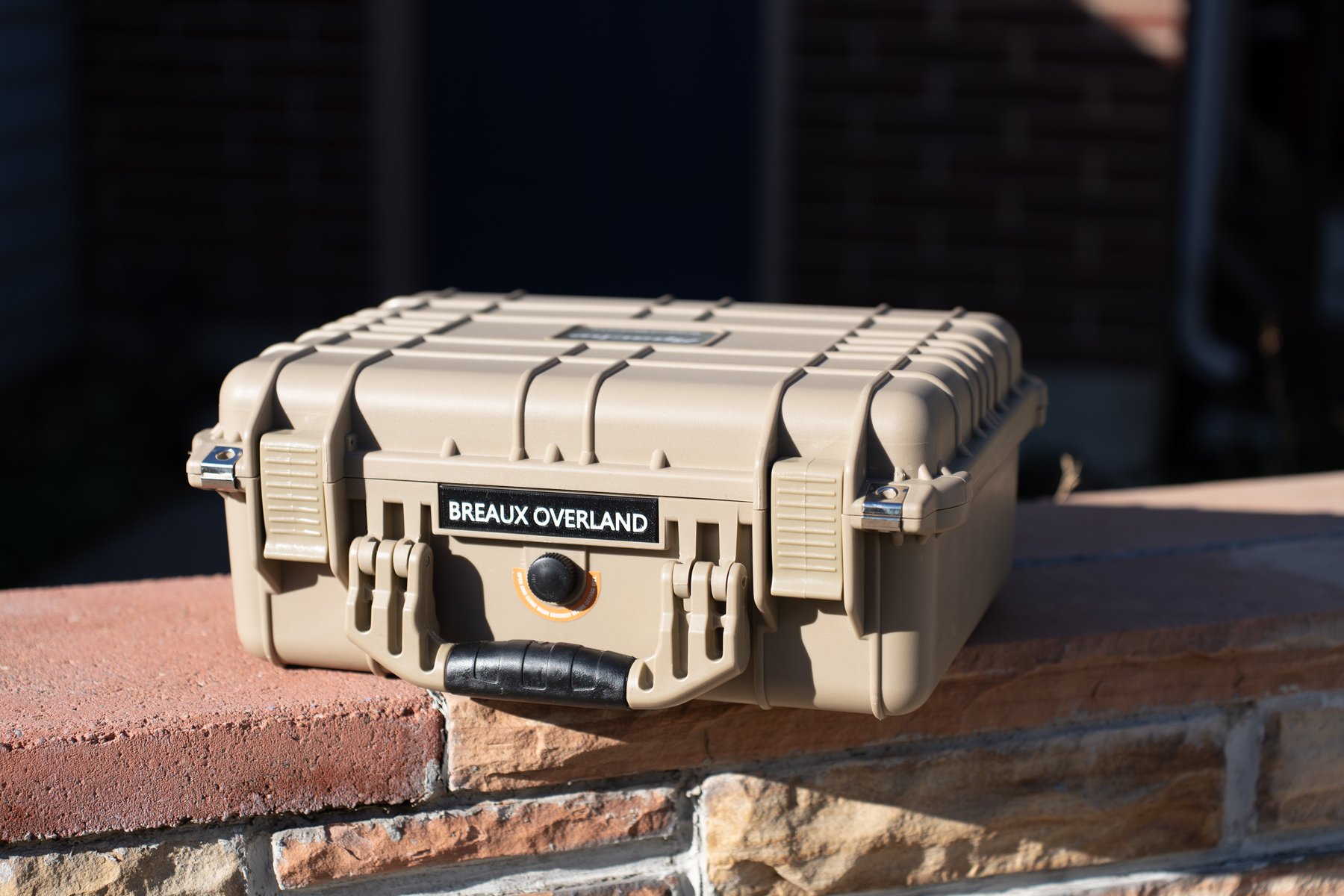

Closed tan Apache 3800 case with a Breaux Overland label on the brick wall
Closed case with the Breaux Overland label.
1 / 6

Power kit

Prewired Battery Box and Lid Mount for Starlink Mini

For the Starlink Mini, in a Harbor Freight Apache 3800 case

Made to order

Price on request

A portable Starlink Mini power kit for a Harbor Freight Apache 3800 case. A 3D printed battery box sits in one end of the case base, already wired with a battery meter, a lighted ON / OFF switch, a 12 V socket with a 100 W USB-C PD adapter, an AC battery charger and a replaceable fuse.

Ask about this part

SKU: BO-STL-BBOX

Features

  • Pre-wired: meter, switch, 12 V socket, USB-C PD adapter, charger and fuse installed and tested
  • Tool-free latch and knob lid mount holds the Starlink Mini in the case lid
  • Meter in a raised bezel, readable with the lid open
  • 100 W USB-C PD adapter in a waterproof 12 V socket
  • 2 A LFP charger built in; its AC cord stores beside the box
  • Replaceable fuse isolates the battery if current in or out goes over 10 A
  • Screw-down cover on brass heat-set inserts, ON / OFF labels inlaid
  • Leaves about 6" of open space in the case for the Starlink cable and accessories
  • Black PETG, which handles heat in a vehicle better than PLA

What's Included

  • Pre-wired battery box with cover and your choice of meter, all connections made on integrated harness
  • Starlink Mini lid mount
  • USB-C cable
  • 12 V cigarette lighter adapter
  • Battery ring terminals and M5 screws
  • #10 x 1/2" floor screws and washers (for the drill install)
  • Printed instructions
  • New Apache 3800 case, with everything installed (if purchasing Assembled option only)

Not Included

  • Starlink Mini, battery, epoxy
  • Apache 3800 case (If purchasing DIY Kit)

Details

DimensionsBox about 9.7" x 9.0" x 4.0" (246 x 228 x 101 mm) overall, including the meter bezel.
MaterialBlack PETG box, cover and lid mount, white PETG inlay lettering, brass heat-set inserts, steel screws.
Battery (not included)12.8 V LiFePO4 with built-in BMS, M5 terminals, up to 3.15 x 7.30 x 6.80 in
Case color (Assembled Kit only)Black, Tan or Orange
Charger2 A, LFP
Fusereplaceable, 10 A
Output12 V socket with 100 W USB-C PD adapter

Options

CaseDIY Kit or Assembled Kit
MeterVoltmeter or Battery Charge Monitor
Ask about this part

Custom cutouts and other changes are quoted on request. Questions first? Email info@breauxoverland.com.
